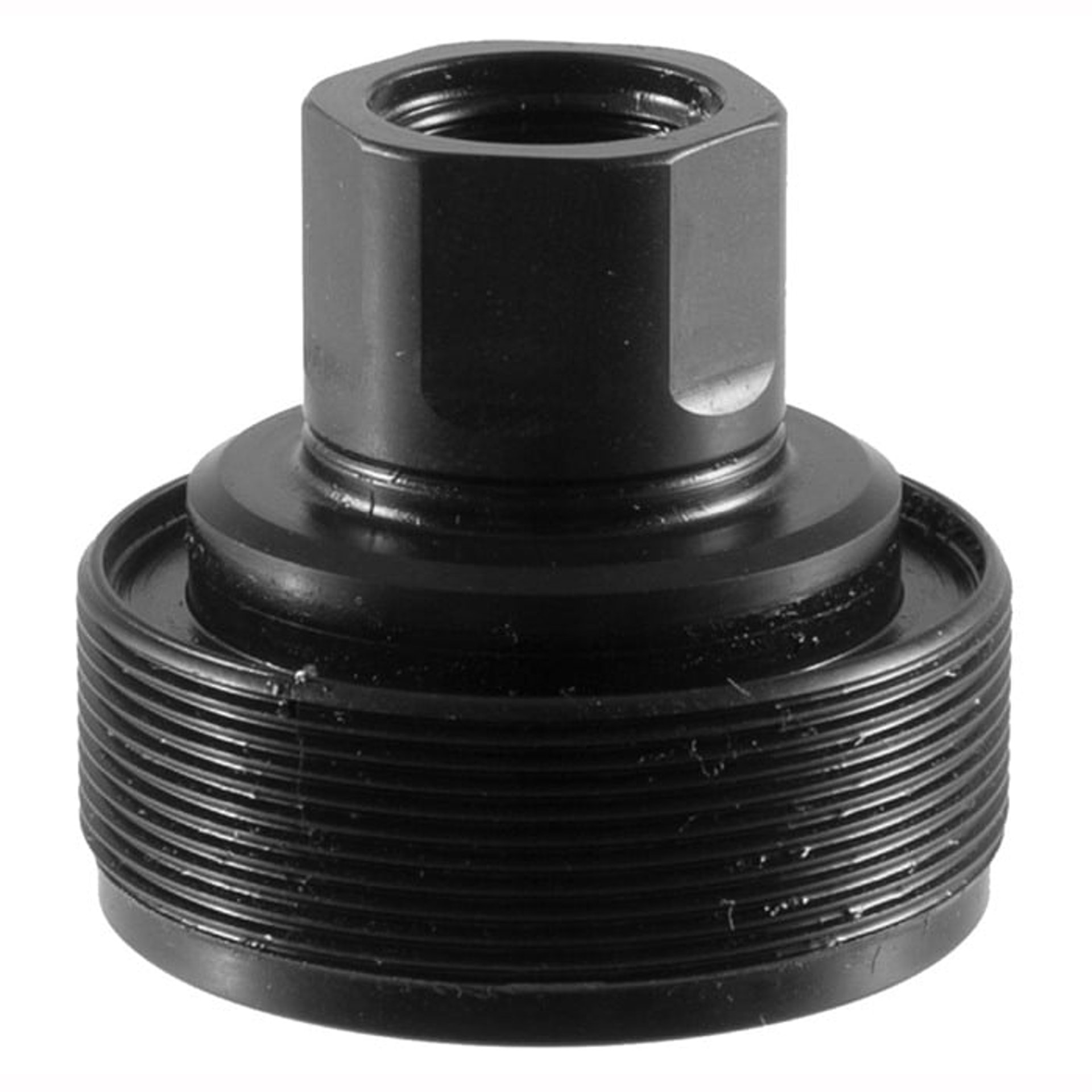

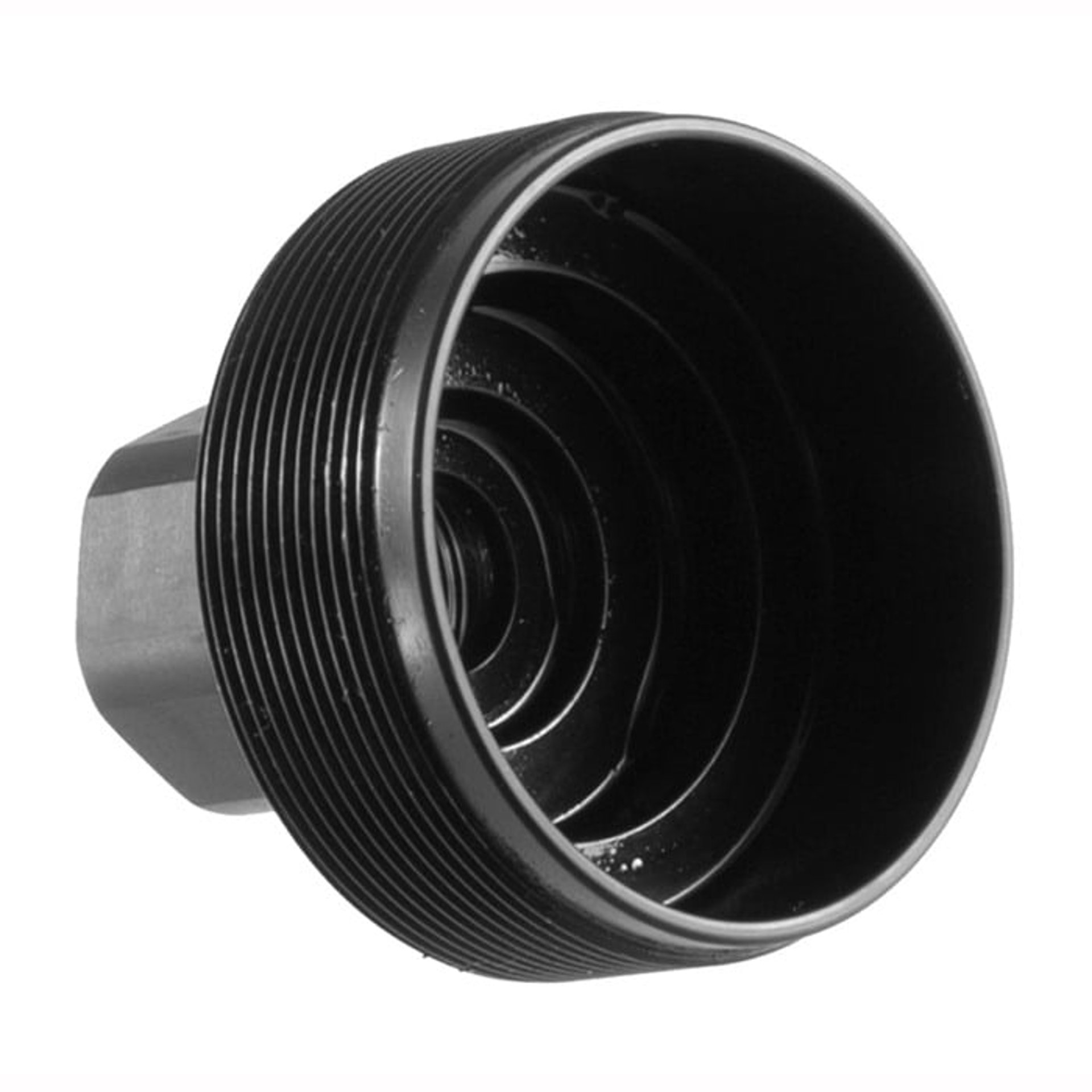

DEAD AIR ARMAMENT WOLVERINE SILENCER THREAD INSERTS

Multiple inserts are available to make your Wolverine one of the most versatile silencers you own. The smaller threads will use the M14 Collar, both M24 thread inserts will use the M24 collar, and the M26 thread will use the M26 collar.

Note: The M26 insert does include the M26 collar, which is why that variation is a different price.

Note: Bulgarian Krinkov/SBRs take the 24mm LONG Insert

*Special Note*

Polish WZ88 “Tantal” rifles have a unique barrel/thread profile that Dead Air does not accommodate currently. The muzzle extends well past the threads and that does not work with this system. They cannot be cut to thread length without being an SBR. It’s an issue Dead Air may address at some point, but for now, the Wolverine cannot mount to them.

SPECIFICATIONS:

14-1mm LH (WV200)

This is the most common thread pitch for eastern European pattern AK’s and the majority of US made / parts kit barrels.

Common examples:

WASR-10

Yugoslavian AK’s (Opap / Npap)

Polish kit builds

East German kit builds

Romanian kit builds

Russian kit builds (7.62×39)

Bulgarian (milled)

M14x1 LH Long (WV210)

Century AKs

M15x1 RH (WV203)

Common HK German Rifle thread pitch

M14x1 RH (WV204)

Czech VZ58

1/2x28 (WV205)

Most .223/5.56mm Rifles

5/8x24 (WV206)

Most .308/7.62mm/.300 Rifles

M13x1 RH (WV207)

Galil ARM (IMI)

M16x1 LH (WV208)

Russian RPD

M24-1.5mm RH (WV201)

Common thread pitch for AK-74 rifles. These threads are on the gas/front sight block, not on the barrel.

Examples:

Russian or Bulgarian AK-74’s

Russian or Bulgarian “Krinkov” AKS-74U

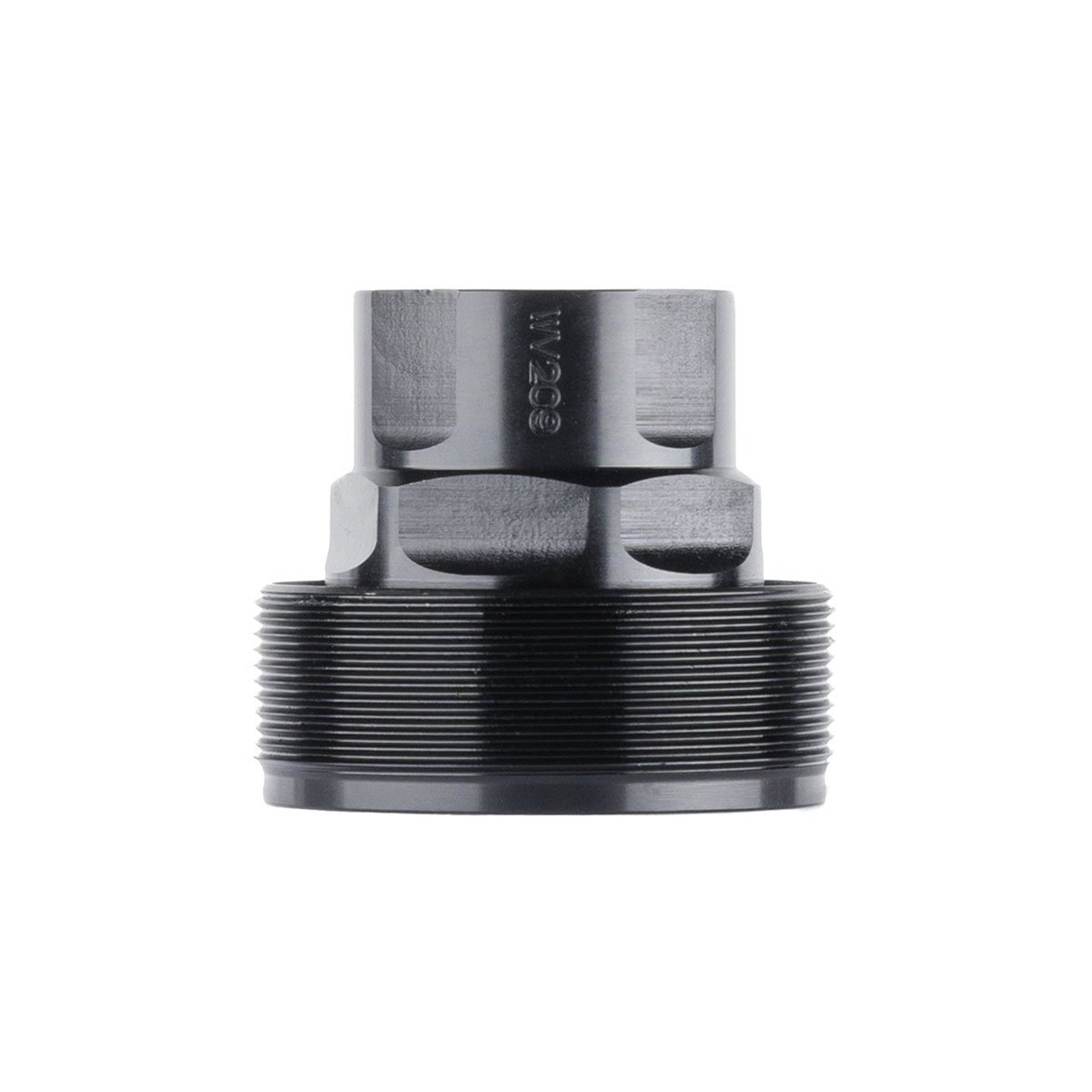

M24x1.5 RH Long (WV209)

Arsenal / Kvar AK’s (7.62×39 or 5.45×39)

26-1.5 mm LH (WV202)

This is primarily a Yugo thread pitch used on their AK pistols Pap92/M85. The threads are on the gas/front sight block, not on the barrel.
