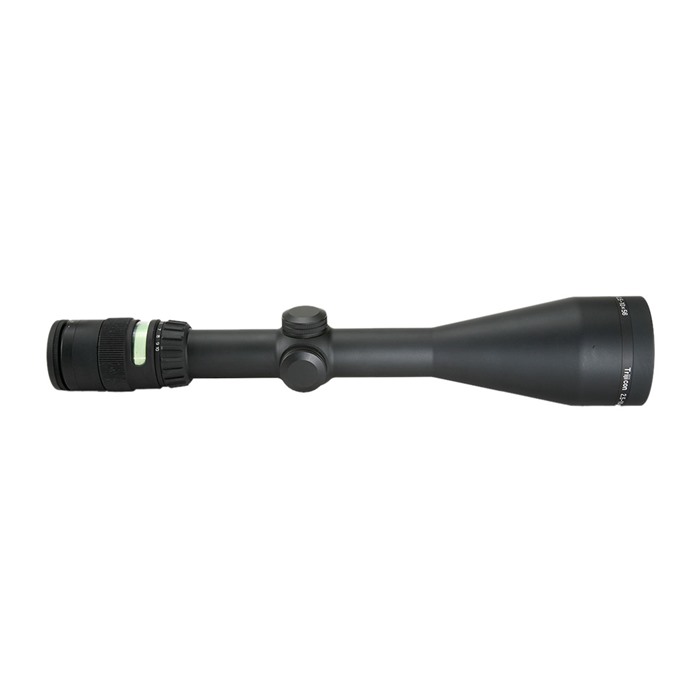

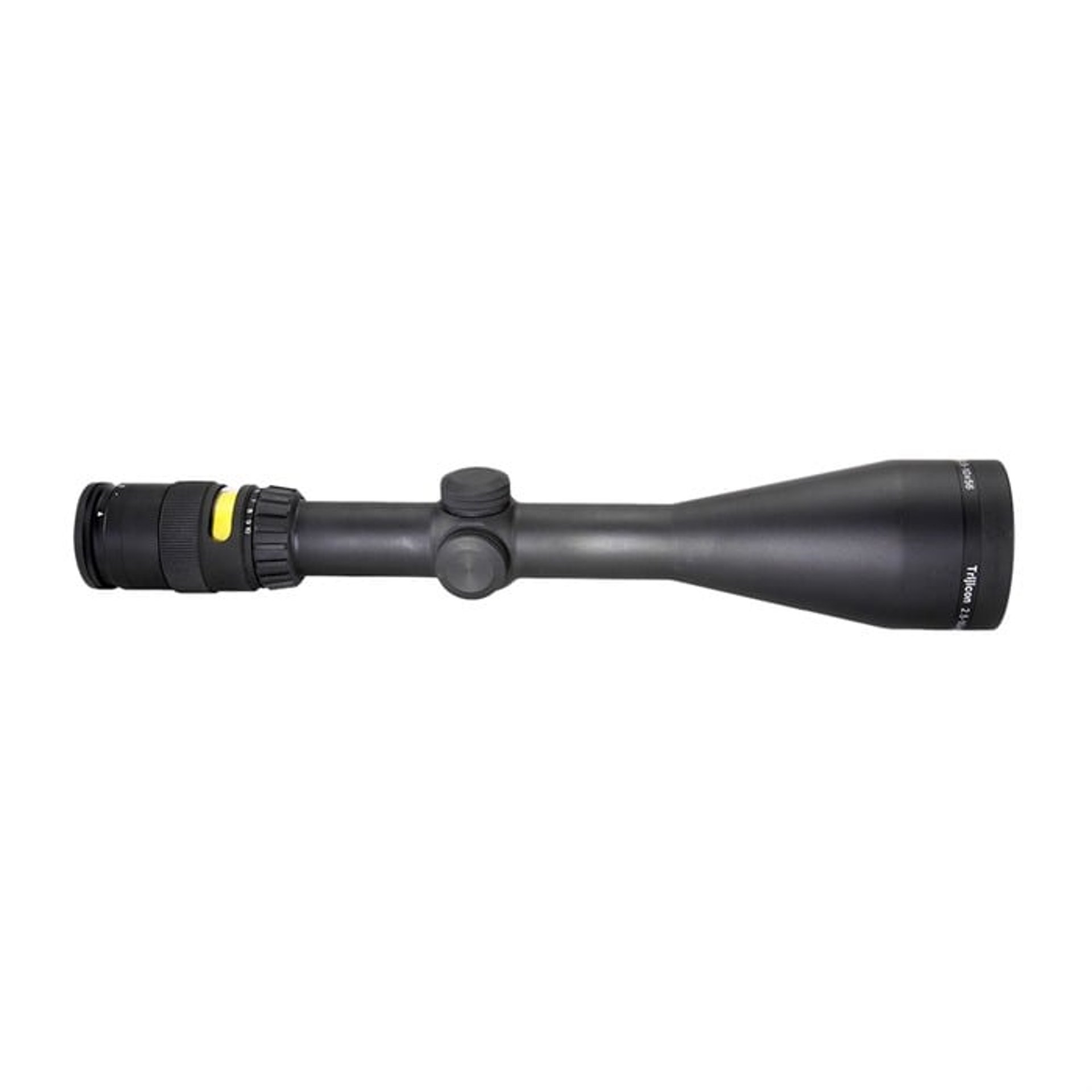

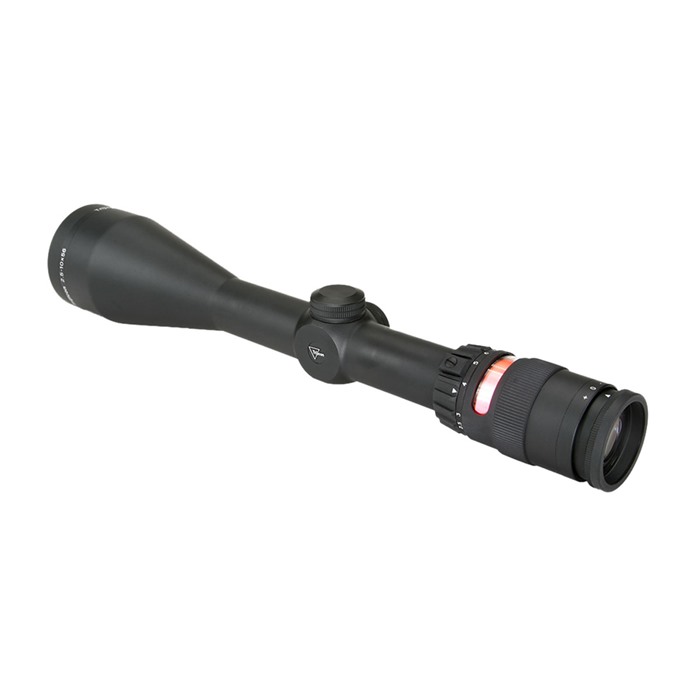

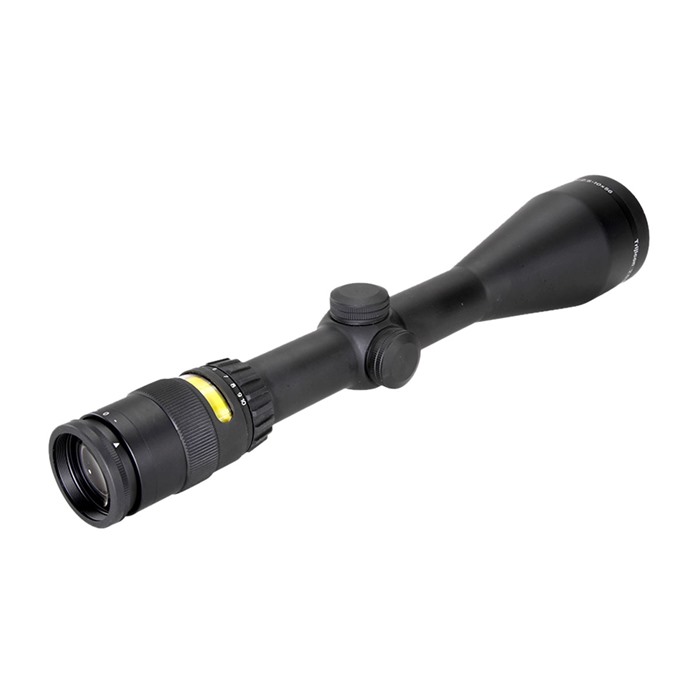

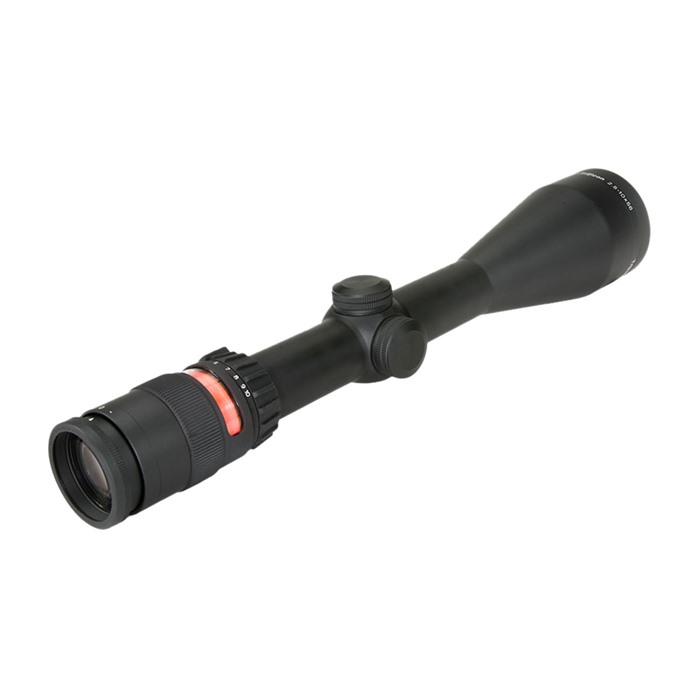

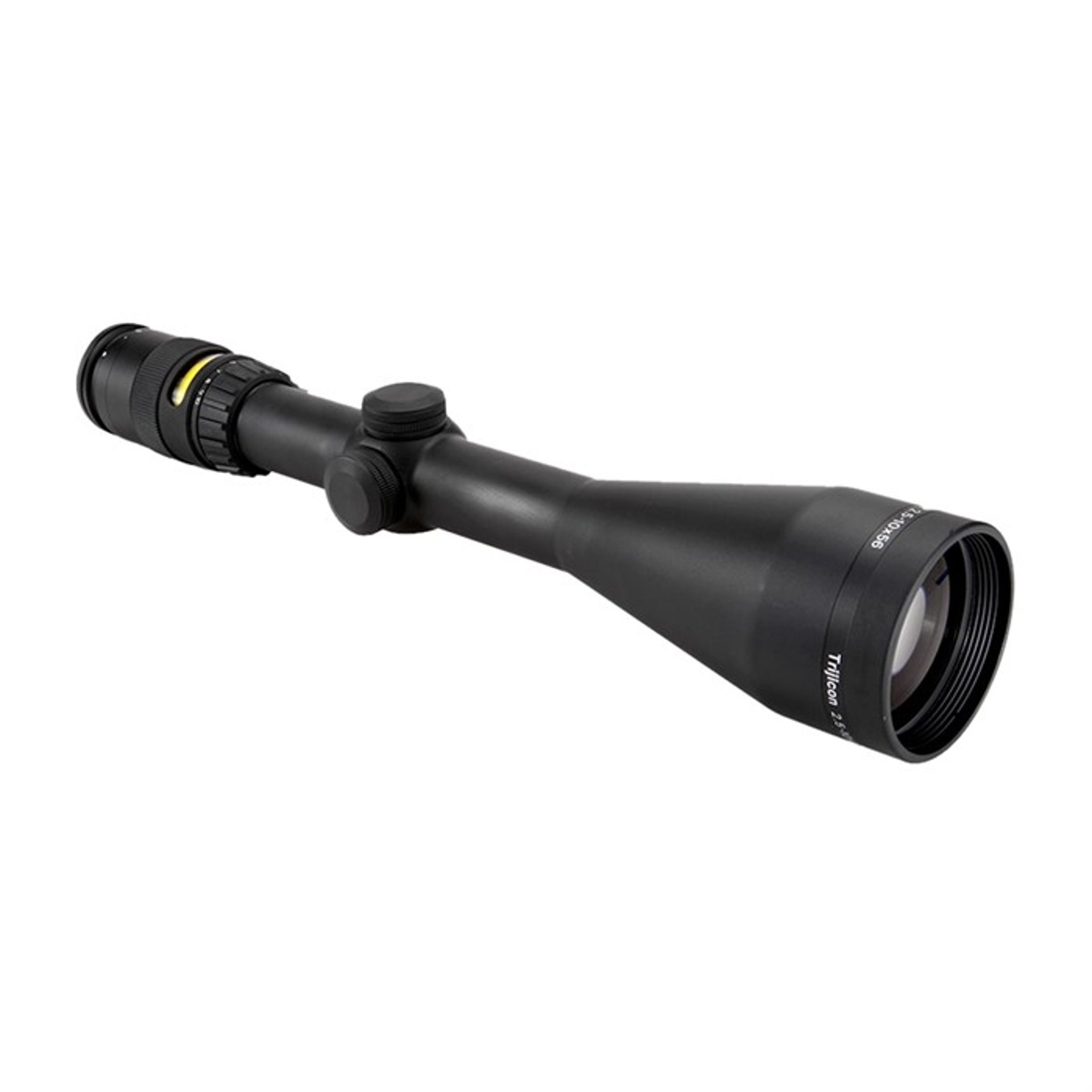

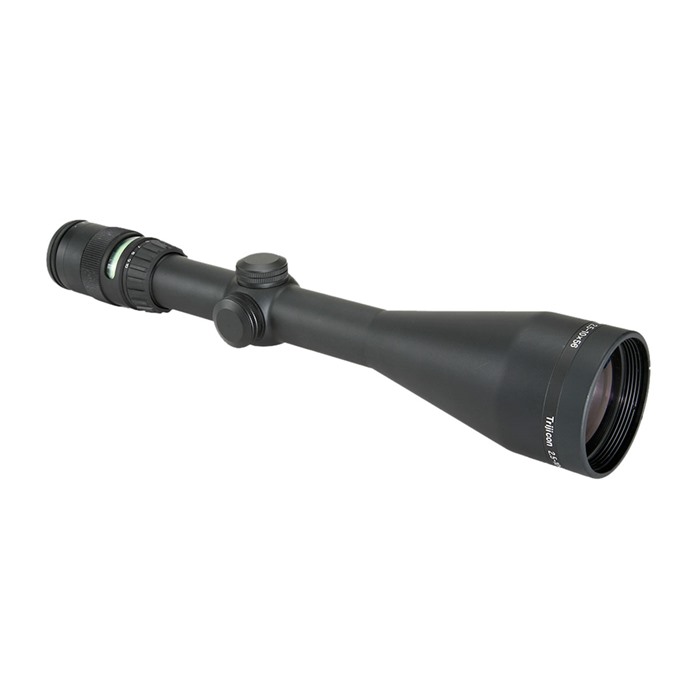

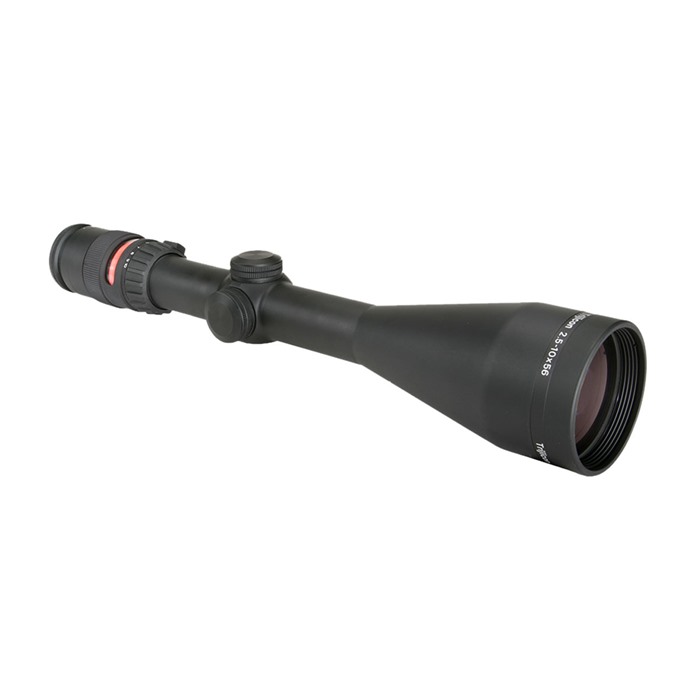

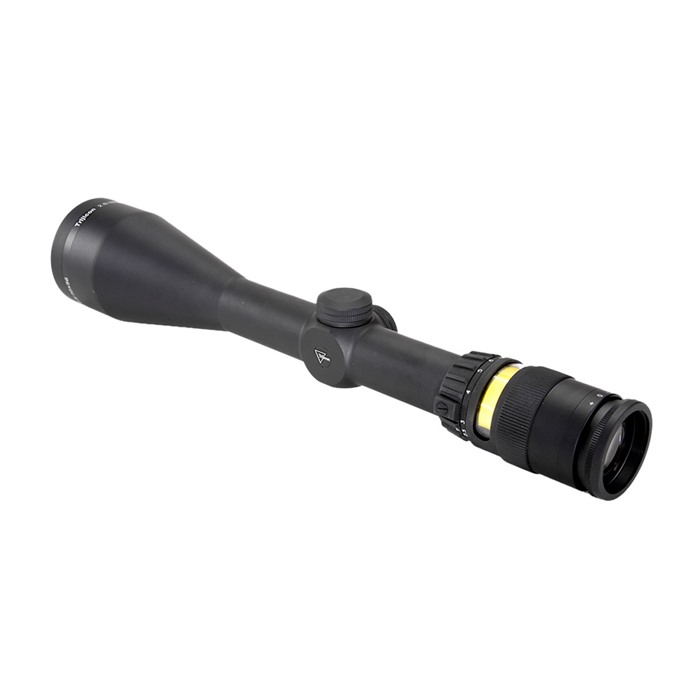

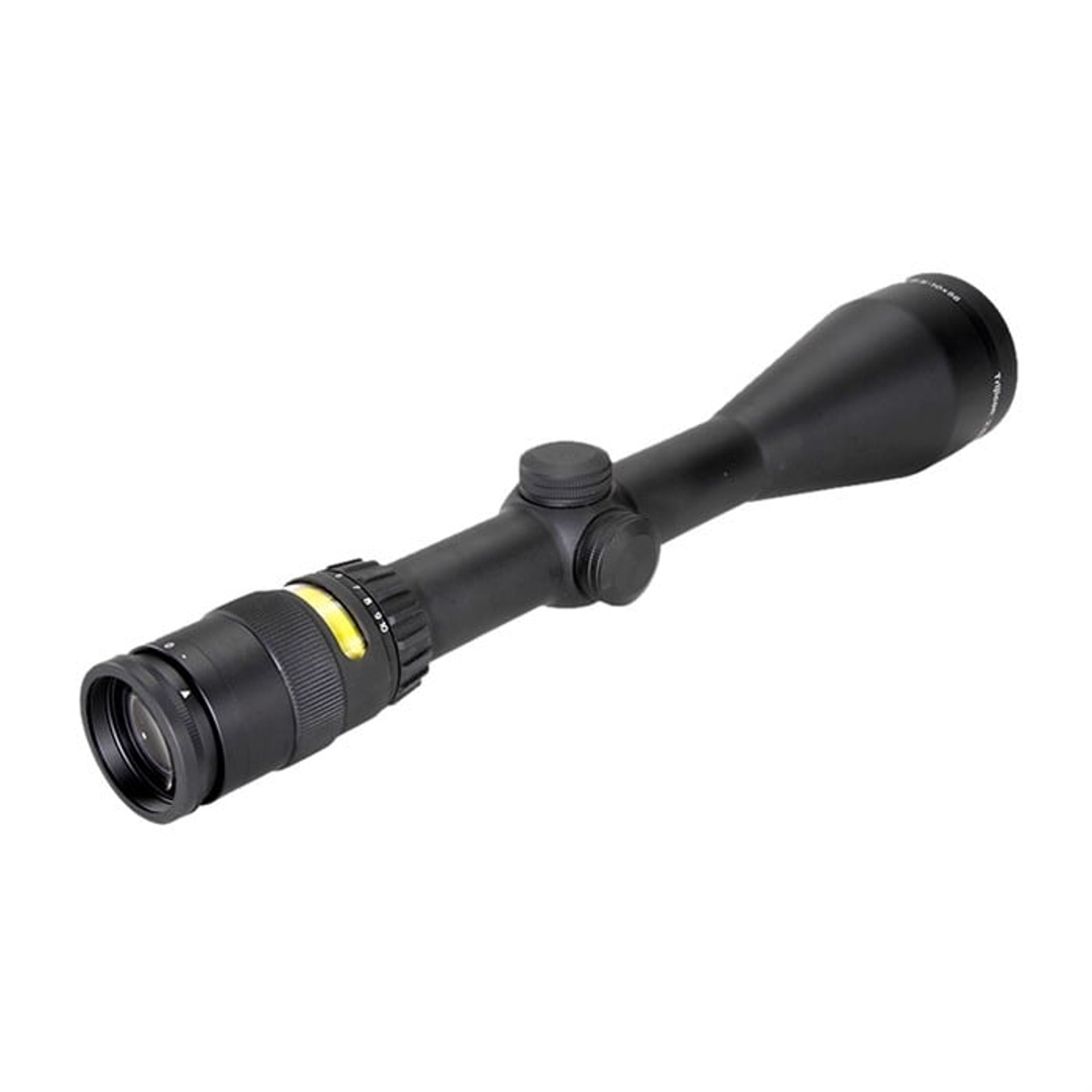

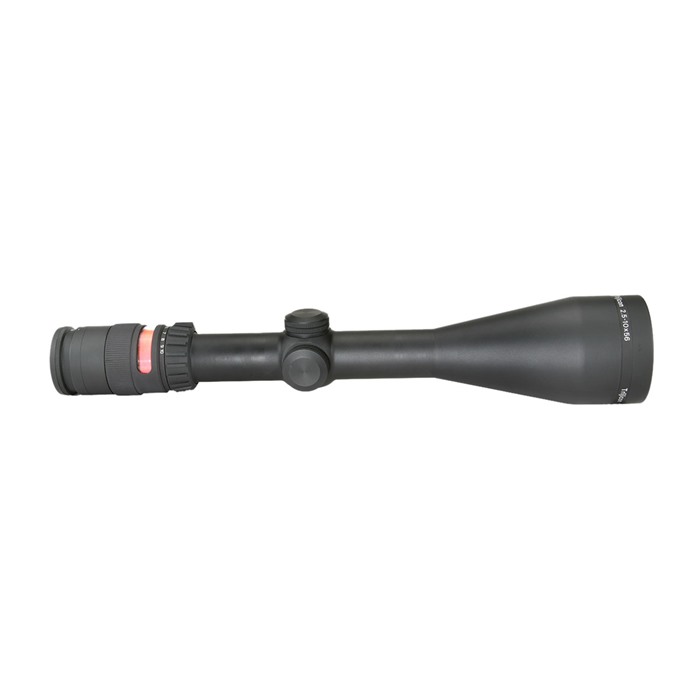

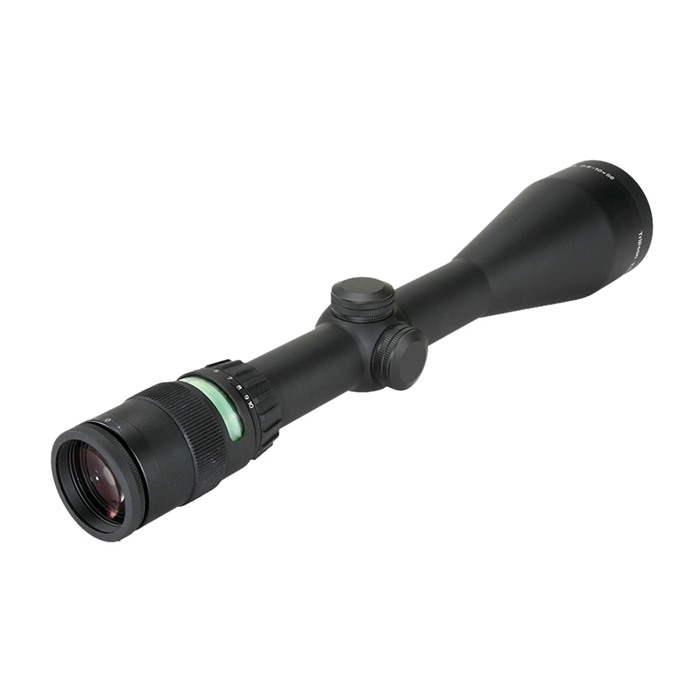

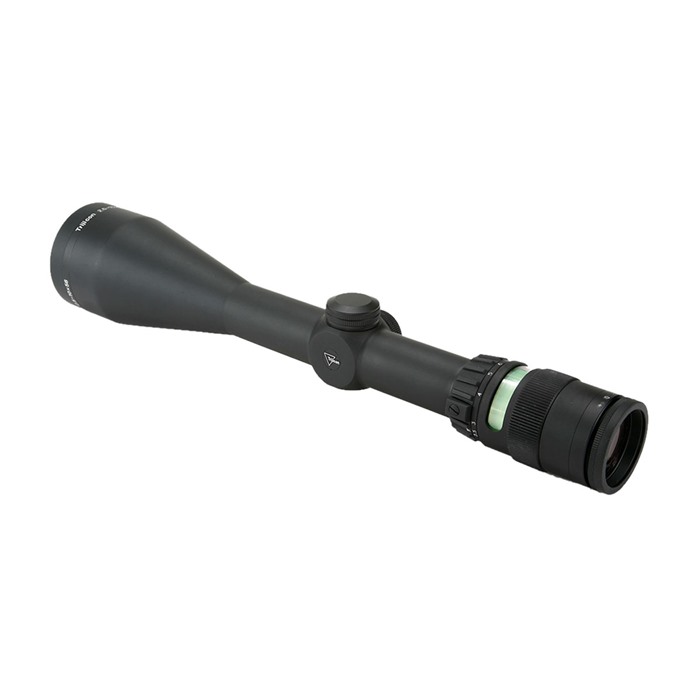

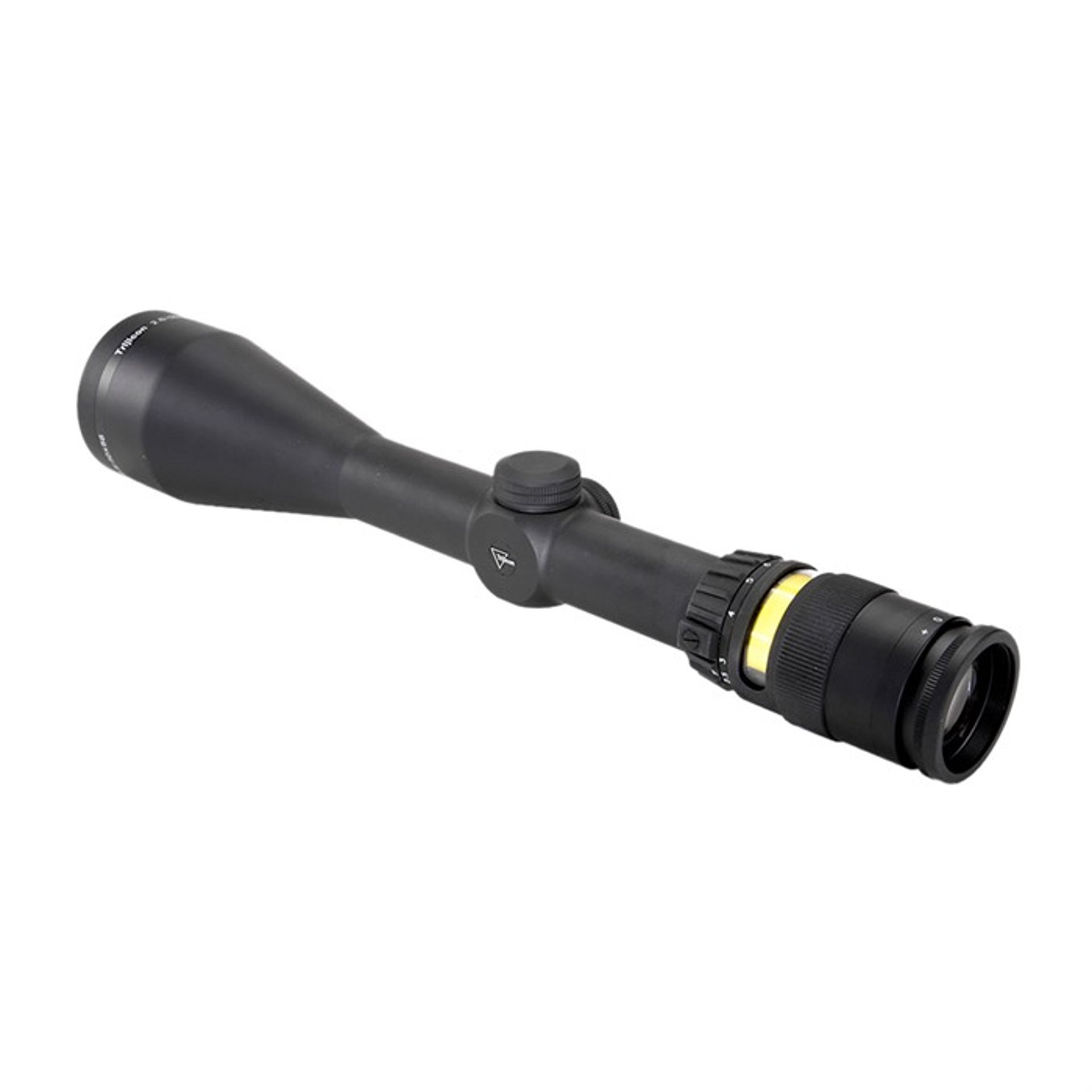

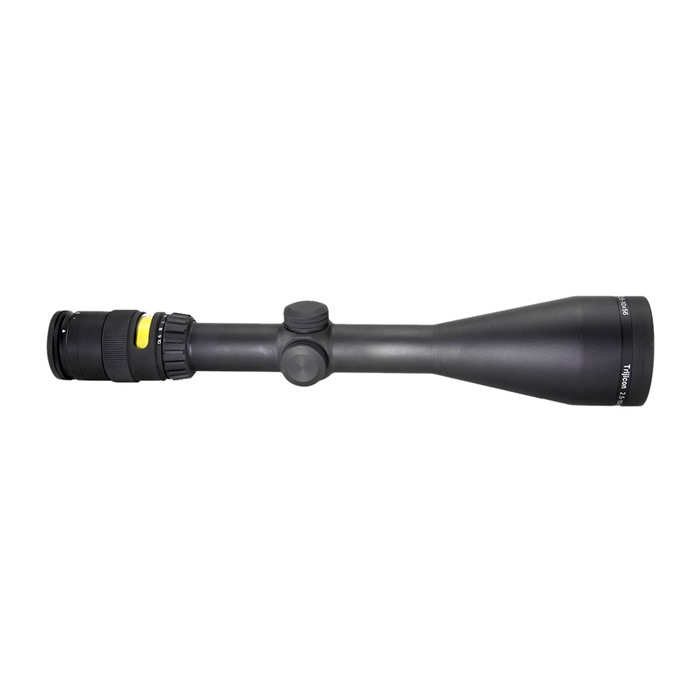

ACCUPOINT 2.5-10X56MM SFP ILLUMINATED RIFLE SCOPE
The TR22 AccuPoint has extreme light gathering capabilities with a huge 56mm objective lens, 30mm tube and the highest quality glass available. The scope is illuminated though the use of fiber optics and tritium, providing a vivid aiming point without the need for batteries. If your hunting calls for long distance shots, this AccuPoint is for you.
FEATURES:
CONFIDENT AIMING IN ANY LIGHT
Battery-free, illuminated reticles are “always on” using tritium/fiber optic technology to automatically adjust to lighting conditions.
EASY-FOCUS EYEPIECE
Diopter accommodates the shooter’s individual prescription.
REPOSITIONABLE MAGNIFICATION LEVER*
Accommodates different shooting positions and rifle configurations. *Available on some models.
QUICK & EASY ADJUSTMENTS
Crisp, precise, windage/elevation adjusters require no tools. Capped or zero stop adjusters ensure no accidental shift.
PURPOSE-DRIVEN DESIGN
Multiple finishes, knurling types, and adjuster styles to suit a variety of applications.
ULTRA DURABLE FOR ENSURED RELIABILITY
Ruggedized design engineered to withstand extreme conditions and tested to military standards and protocols.
EDGE-TO-EDGE CLARITY
Fully multi-coated, broadband, anti-reflective glass provides excellent light transmission, true detail and color with zero distortion.
“BOTH-EYES-OPEN” SHOOTING
Illuminated reticles use Trijicon's Bindon Aiming Concept® (BAC) feature to provide a clear aiming point that draws the shooter’s eye for fast engagement.
QUICK TARGET ACQUISITION
Proven reticle designs for the most discerning hunters, ensuring fast ranging and holdovers.
OPTIMAL FLEXIBILITY
Generous windage and elevation adjustment for maximum total travel.
INCLUDED IN THE BOX:
- Trijicon Logo Sticker (PR15)
- LENSPEN® (TA56)
- Set of Lenscaps
- AccuPoint Manual
- Warranty Card
SPECIFICATIONS:
- Length – 13.8 in (350.52mm)
- Width – 2.6 in (66.04mm)
- Height – 2.6 in (66.04mm)
- Weight – 20.7 oz (586.83g)
- Magnification – 2.5-10x
- Objective Size - 56mm
- Tube Size – 30mm

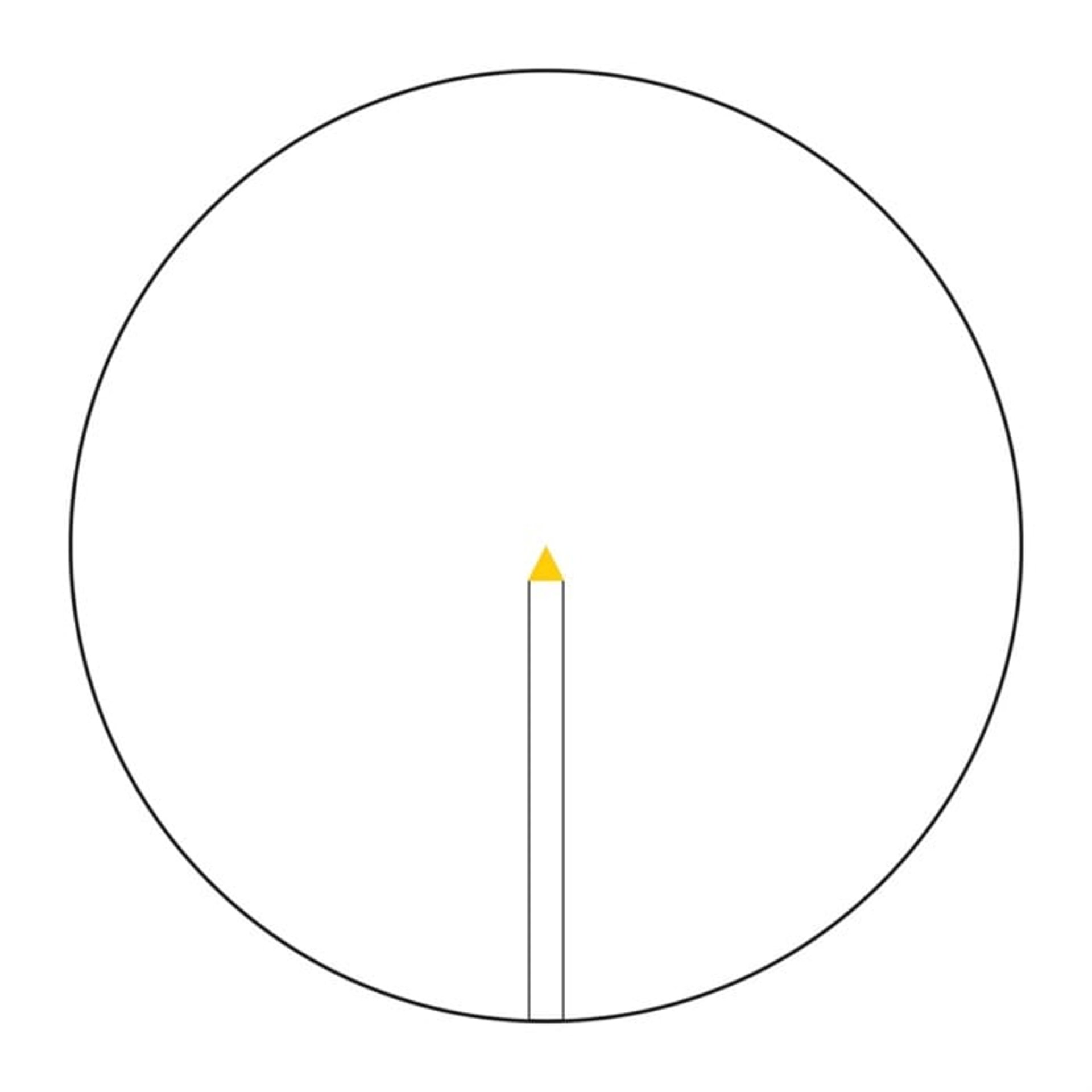

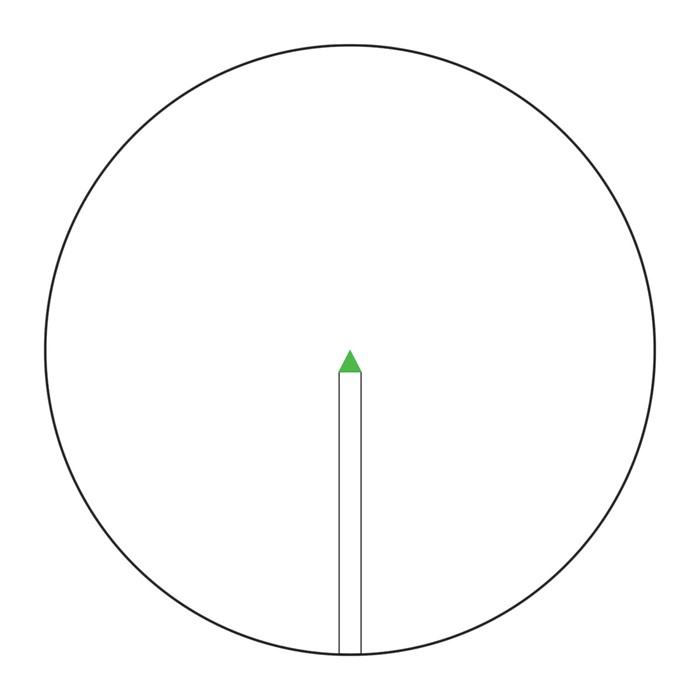

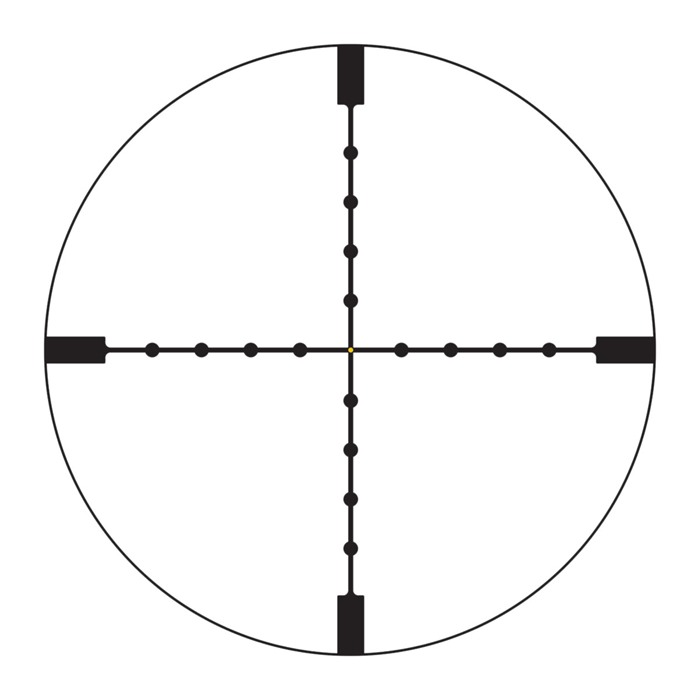

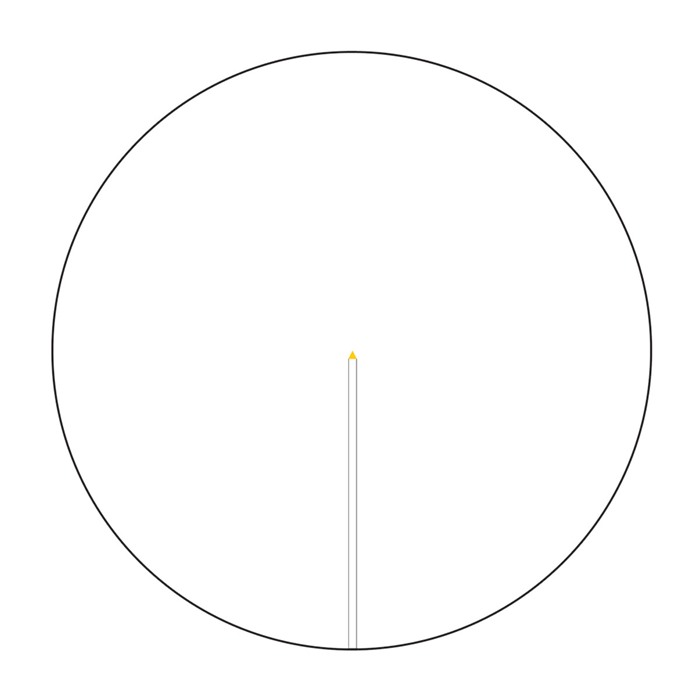

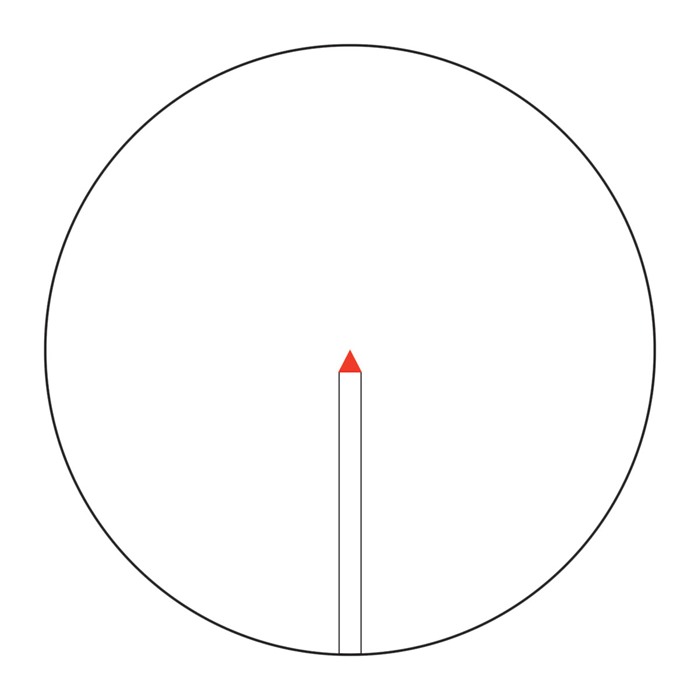

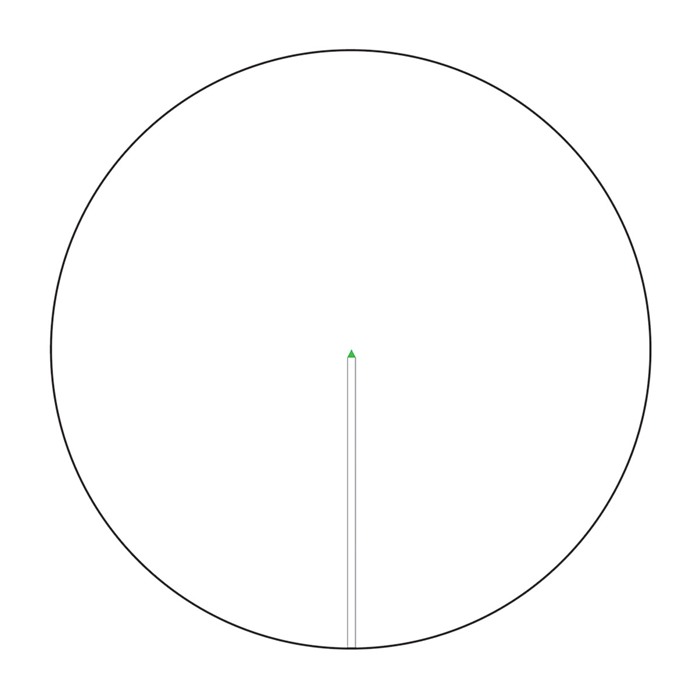

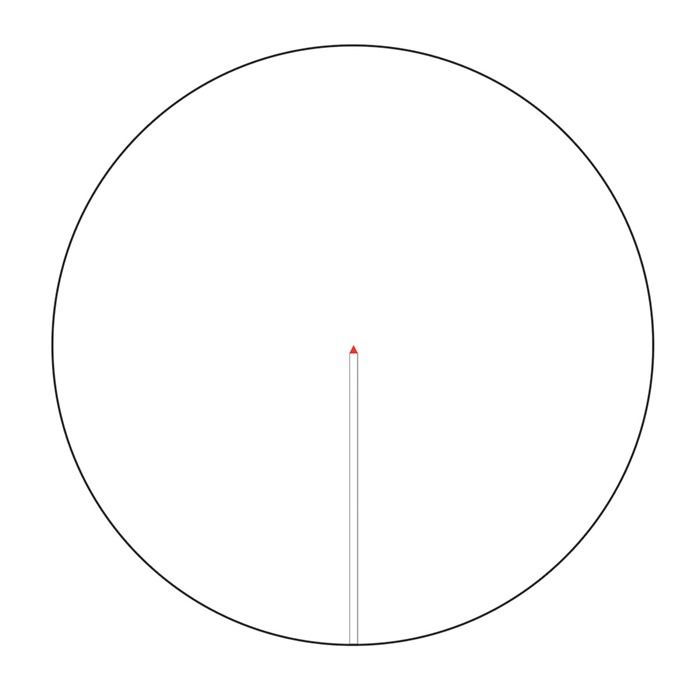

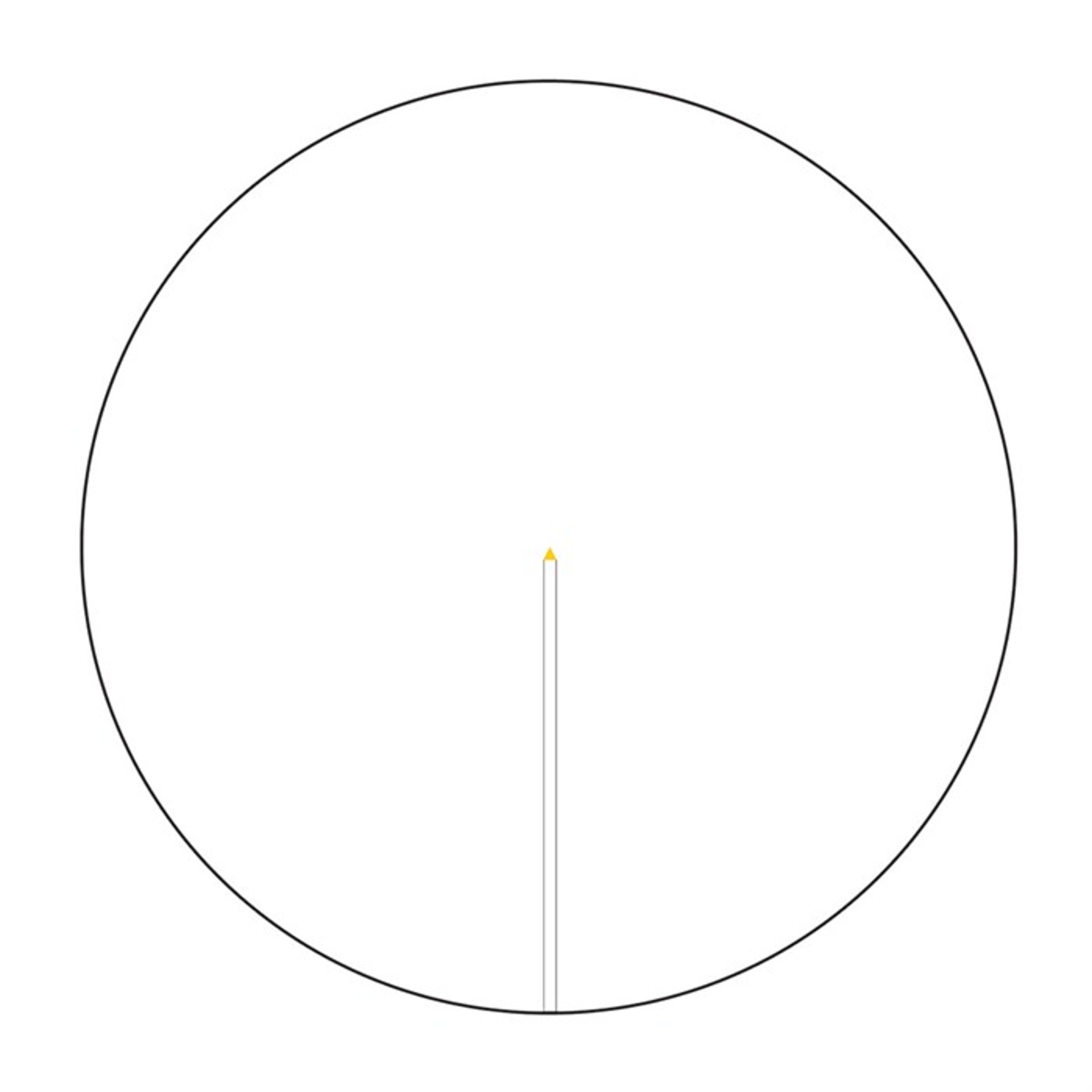

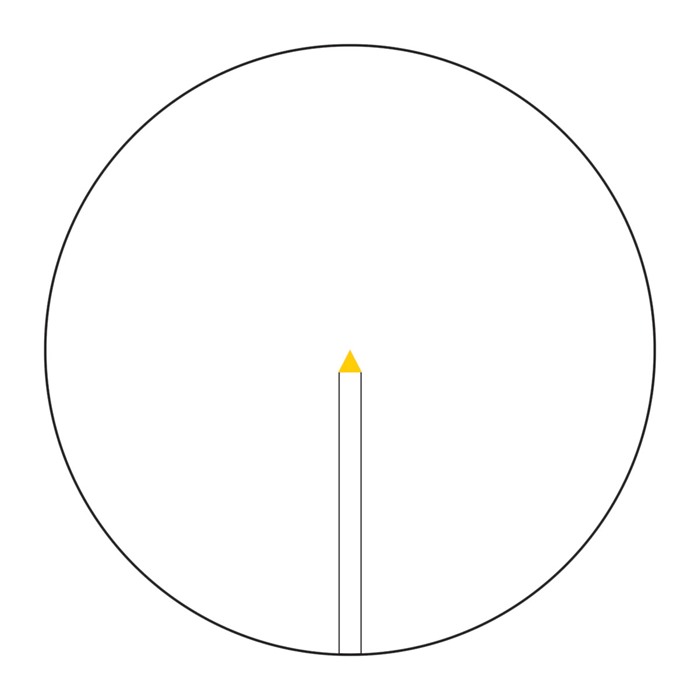

- Reticle Pattern – MIL-Dot Crosshair, Triangle Post
- Day Reticle Color – Amber, Red or Green
- Night Reticle Color – Amber, Red or Green
- Focal Plane – Second
- Bullet Drop Compensating (BDC) – No
- Bindon Aiming Concept™ (BAC) - No
- Illumination Source – Fiber Optic & Tritium
- Power Source – Fiber Optic & Tritium
- Adjustment – 1/4 MOA
- Adjustment Range – 50 - 60 MOA Total Travel
- Eye Relief – 4.1 in. - 2.8 in. (104.14mm - 71.12mm)
- Exit Pupil - 0.64 in. - 0.17 in. (16.26mm - 4.32mm)
- Field of View (degrees) – 7.18° - 1.94°
- Field of View (feet) – 37.6 ft. - 10.1 ft. @ 100 yds. (12.53 - 3.37m @ 100m)
- Housing Material – 6061-T6 Aluminum
- Finish – Matte Black
- Submersion Depth – 10 Ft (3m)
